Product Brief

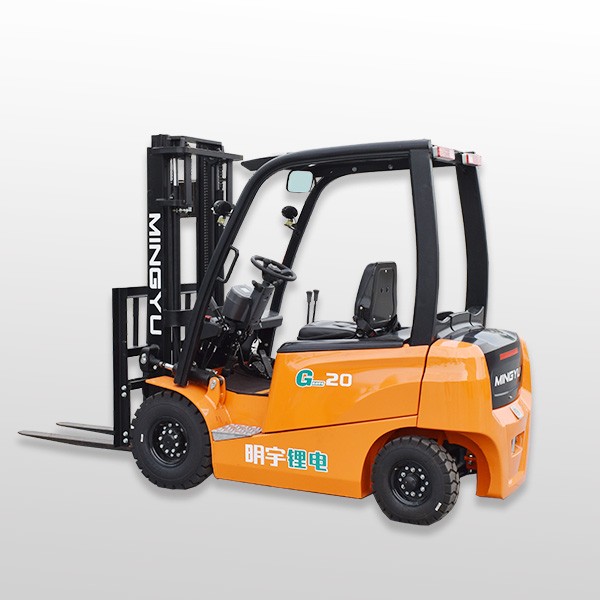

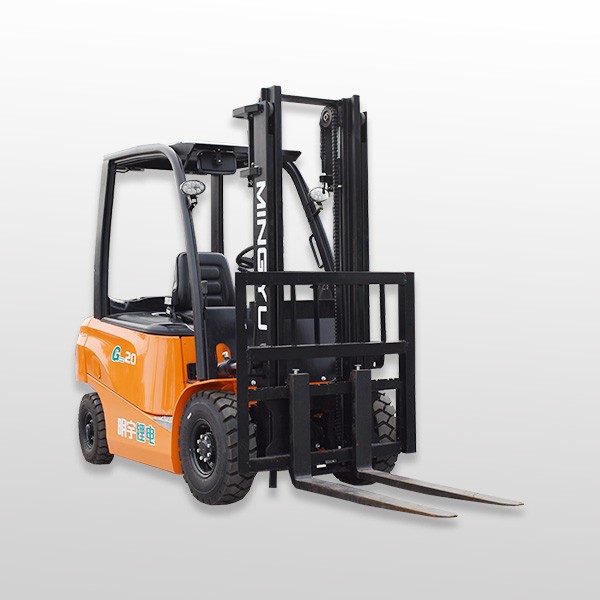

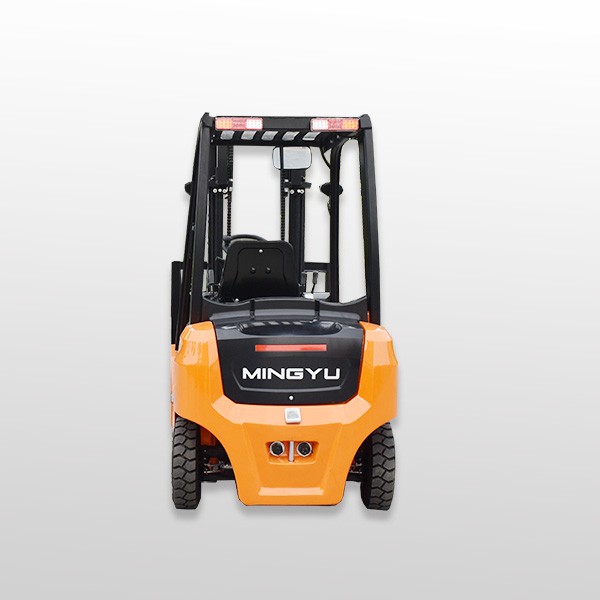

The new CPD20-B is a key product launched by MYZG. Based on MYZG's high-tech, large-scale manufacturing capabilities and experienced sales and service, the new CPD20-B series marks a milestone for MYZG products to fully consider market and customer needs.
Product Features
*Door frame
*Body
The whole vehicle is welded with high-quality steel, the structure is stable, the whole vehicle is painted with electrophoresis, and has strong corrosion resistance.
*Roof Guard
Heterosexual interface, adopts one-time molding roof guard, beautiful in appearance, durable, arched design, strong compression resistance, high safety factor.
*Fork
One-piece forging process, high strength, safe and stable structure, and it is more convenient to adjust the truck.
Product Parameters
| Model | CPD20 | |
| Power Type | accumulator | |
| rated load lifting capacity | 2000kg | |
| Load centre distance | 500mm | |
| driving style | Sit down | |
| length | with fork | 3070mm |
| without fork | 1990mm | |
| wideth | 1148mm | |
| height | Do not raise the mast height | 2150mm |
| Overhead guard height | 2124mm | |
| Max height at working | 4093mm | |
| Distance from seat surface to top guard frame | 970mm | |
| wheel base | 1354mm | |
| front overhang | 360mm | |
| rear overhang | 285mm | |
| front wheel track | 948mm | |
| rear wheel track | 863mm | |
| minimum ground clearance | 87mm | |
| Standard lifting height | 3000mm | |
| free lifting height | 45mm | |
| Fork adjustment range | 200-1040mm | |
| minimum turning radius | 1890mm | |
| Minimum right-angle channel width(1100*1100 pallets) | 3450mm | |
| Gantry angle (front/rear) | 5/10° | |
| Maximum lifting speed without load | 350mm/s | |
| Maximum lifting speed with full load | 260mm/s | |
| Maximum operating speed without load | 15Km/h | |
| Maximum operating speed with full load | 14Km/h | |
| Max gradeability with full loading | 15% | |
| Weight unladen | 3340Kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Pneumatic tyre/pneumatic tyre | |
| tyre size(front) | 21x8-9 14PR | |
| tyre size(rear) | 16x6-8 10PR | |
| Brake/driving brake | Foot Brake | |
| parking brake | Hand Brake | |
| Battery voltage/capacity | 80V/105Ah | |
| drive motor power | 7Kw | |
| Oil pump motor power | 10Kw | |
| fork length | 1070mm | |
1. We are manufacture,also group company,which has more than 20 years export experience.
2. All machines sold must be tested 3-5 times before shipment,100% quality assurance.
3. 7*24 hours technical support by email,telephone or video online.
4. We provide free wearing parts, instructional videos, and provide pre-sale, in-sale and after-sale service support for life.
5. 24 months warranty time.
