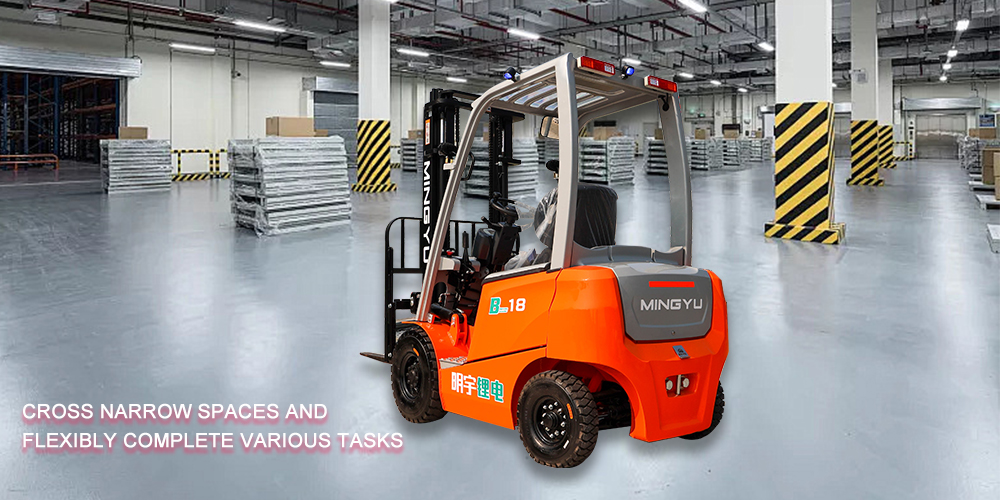

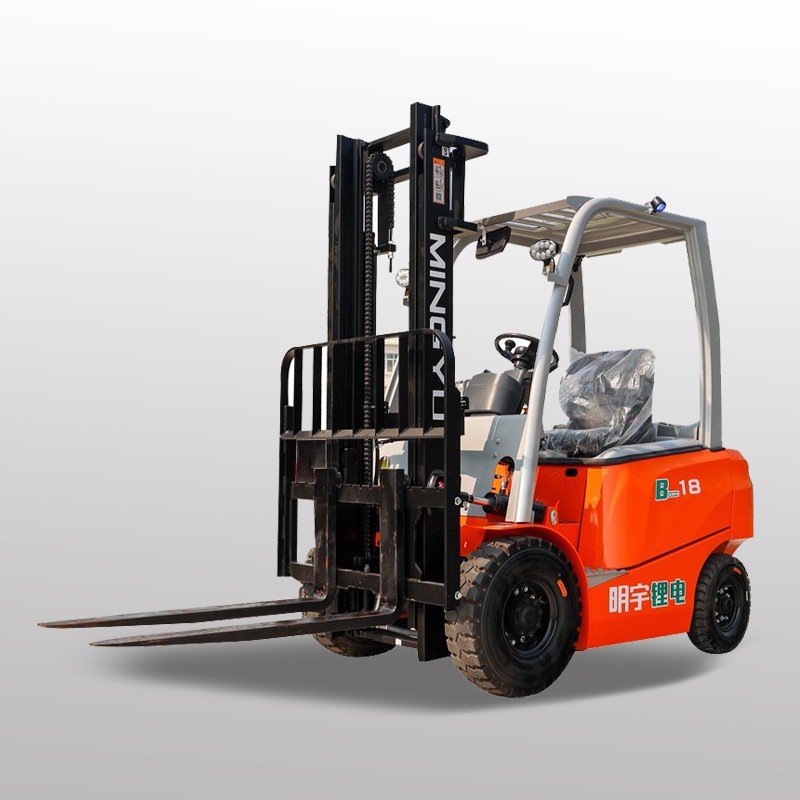

Product Brief
The new CPD18-B is a key product launched by MYZG. Based on MYZG's high-tech, large-scale manufacturing capabilities and experienced sales and service, the new CPD18-B series marks a milestone for MYZG products to fully consider market and customer needs.
Product Features
FAST CHARGE AS YOU GO
Through the subversive battery and fast charging technology, the charging time can be reduced by
90% at the fastest, and the fastest 1h can be filled, and the fast charging makes it possible for the
forklift to work continuously without gaps, reduce the waiting time, greatly improve efficiency,
and create unlimited battery life.
LONG SERVICE LIFE
Under normal charge and discharge conditions, after 4000 cycles of charge and discharge, the
capacity retention rate is greater than 75%, the life span is as long as 10 years, and the battery
does not need to be replaced within the normal vchicle life cyele.
LOW OVERALL COST
Lithium battery forklifts can save 80% of the comprehensive cost compared to fuel forklifts, and 40% of
the comprehensive cost compared to lead-acid battery forklifts.
Product Parameters
Model | CPD18 | |
Power Type | Li-ion | |
rated load lifting capacity | 1800KG | |
Load centre distance | 500mm | |
driving style | Driving style | |
length | with fork | 3100mm |
without fork | 2020mm | |
width | 1100mm | |
height | Do not raise the mast height | 2060mm |
Overhead guard height | 2010mm | |
Max height at working | 4050mm | |
wheel base | 1315mm | |
front overhang | 350mm | |
rear overhang | 380mm | |
front wheel track | 925mm | |
rear wheel track | 920mm | |
minimum ground clearance | 120mm | |
Standard lifting height | 3000mm | |
free lifting height | 80mm | |
Fork adjustment range | 260-1100mm | |
minimum turning radius | 1800mm | |
Minimum right-angle channel width(1100*1100 pallets) | 3450mm | |
Gantry angle (front/rear) | 6/12掳 | |
Maximum lifting speed without load | 430mm/s | |
Maximum lifting speed with full load | 360mm/s | |
Maximum operating speed without load | 15Km/h | |
Maximum operating speed with full load | 14Km/h | |
Maxi climbing slope under full load | 15% | |
overall weight | 2810Kg | |
Number of wheels = driving wheels/steering wheels | 2/2 | |
Tyre type (front/rear) | pneumatic | |
tyre size(front) | 6.50-10 | |
tyre size(rear) | 5.00-8 | |
Brake/driving brake | foot brake | |
parking brake | hand brake | |
Battery voltage/capacity | 80V/105AH | |
Charger | 80V/35A | |
Drive motor power | 13Kw | |
Oil pump motor power | 13Kw |
1. We are manufacture,also group company,which has more than 20 years export experience.
2. All machines sold must be tested 3-5 times before shipment,100% quality assurance.
3. 7*24 hours technical support by email,telephone or video online.
4. We provide free wearing parts, instructional videos, and provide pre-sale, in-sale and after-sale service support for life.
5. 24 months warranty time.
Company Introduction
Shandong Mingyu Heavy Industry Machinery Co., Ltd. was founded in 1996.We spe-cialise in producing electric forklift and internal consumption forklift with profes-sional R&D team. The company is located in Laizhou City, Yantai, with a superior geographical location. We always care for what customer thinks of and think of what customer cares for.The company has 16 modern production workshops with annual output of 80000unites,covering an area of 200000 square meters. We have over 200 world- class welding, cutting, and machining equipments. The number of our R&D team members
is about 140. Our company has passed ISO9001 international quality system certifica-tion, ISO14001environmental system certification. Mingyu Heavy Industry is deter-mined to build itself into an innovative enterprise that integrates production,education, and research.The rated lifting of our product , internal consuption forklift and electric forklift , is from lton to 5tons. Our products are widely used in various fields such as ware housing and transportation and also they are best known for their beautiful appear-ance, reliable performance, and high-quality service throughout the country.In the new era, the company is willing to work together with new and old friends and customers to explore and innovate on the journey of building a moderately prosperous society and realizing the great rejuvenation of the Chinese nation. We strive for excel-lence, and create brilliance together!
