Product Brief

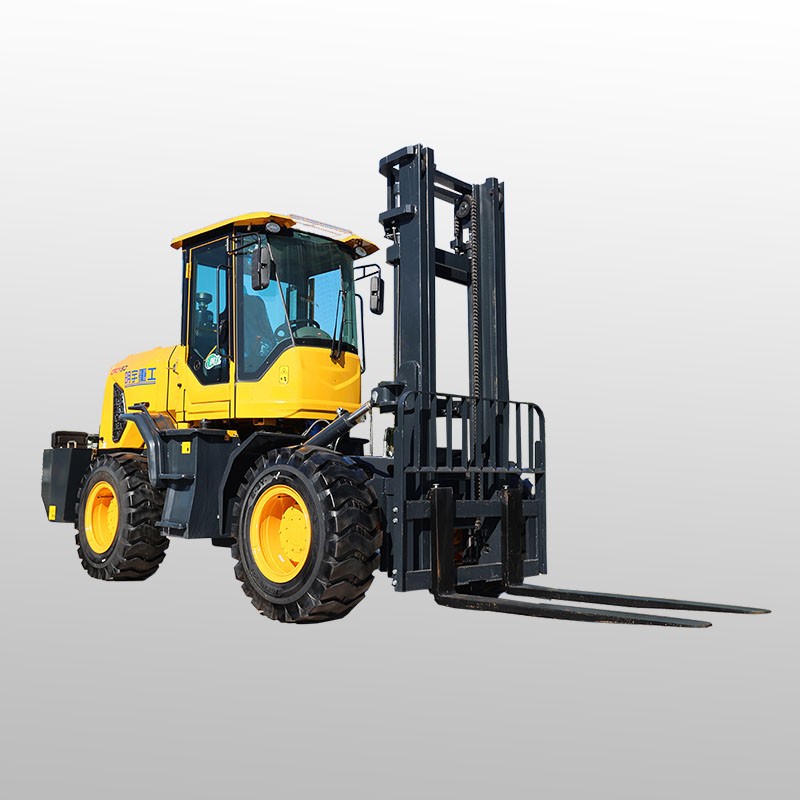

CPC40 is a special equipment for material handling and stacking, with a maximum lifting capacity of 4T and a maximum lifting height of 3m, which can also be increased. The product is flexible, efficient and widely used.
·Flexible and efficient operation
·Safe and reliable, easy to use
·Economic and environmental protection, cost saving
·People-oriented, comfortable driving
Product Features
1.optional attachment :Quick hitch ,pallet fork ,4in 1 bucket , closed road sweeper,Grass fork ,snow bucket , snow blade
2.Color and style can be customized
3.Different types of engines can be matched according to your different needs.
4.Our factory can provide private custom logo services according to your needs, customize styles according to your preferences, and be your foundry.
Product Parameters
| Model | CPC(D)40 | |
| Power Type | diesel | |
| rated load lifting capacity | 4000kg | |
| Load centre distance | 500mm | |
| driving style | Sit down | |
| length | with fork | 4128mm |
| without fork | 3008mm | |
| wideth | 1228mm | |
| height | Do not raise the mast height | 2204mm |
| Overhead guard height | 2100mm | |
| Max height at working | 4262mm | |
| Distance from seat surface to top guard frame | 970mm | |
| wheel base | 1710mm | |
| front overhang | 457mm | |
| rear overhang | 550mm | |
| front wheel track | 1000mm | |
| rear wheel track | 980mm | |
| minimum ground clearance | 165mm | |
| Standard lifting height | 3000mm | |
| free lifting height | 70mm | |
| Fork adjustment range | 260-1100mm | |
| minimum turning radius | 2550mm | |
| Minimum right-angle channel width(1100*1100 pallets) | 4300mm | |
| Gantry angle (front/rear) | 6/12° | |
| Maximum lifting speed without load | 400mm/s | |
| Maximum lifting speed with full load | 360mm/s | |
| Maximum operating speed without load | 20Km/h | |
| Maximum operating speed with full load | 20Km/h | |
| Max gradeability with full loading | 20% | |
| Weight unladen | 4900kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Pneumatic tyre/pneumatic tyre | |
| tyre size(front) | 28x9-15 | |
| tyre size(rear) | 6.50-10 | |
| Brake/driving brake | Foot Brake | |
| parking brake | Hand Brake | |
| Engine |
quanchai/xinchai/ Isuzu |
|
| rated power | 39/40kw | |
| Oil pump motor power | 2500r/min | |
| fork length | 1220mm | |
MYZG always treat after-sale service as important as sale.
Nowadays we have been sell more than 100 countries.
All the products of mingyu supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product's quality certificate.
Service in Philippines,Indonesia, Thailand, Vietnam, Brazil, Mexico, Russia , Chile,German, France,England, Ireland, New Zealand, Romania,etc 100+ Countries at Present.
